Please read the complete instruction manual carefully before installing and using your Qure Faucet Filter.
1
Why You'll Love the Qure Faucet Filter
Qure Faucet Filter is designed to remove harmful impurities such as chlorine, calcium, and magnesium, ensuring your skin remains clear, hydrated, and free from irritants. It helps prevent premature aging, reduces redness, and is suitable for sensitive skin.
DISCLAIMERQure Skincare Pty Ltd or its representatives hold no responsibility for treatment outcomes as individual results may vary. Qure™ Faucet Filter is not designed to cure diseases, and is to be used as directed.
Key Features:
- Removes up to 99.9% of skin-damaging contaminants.
- Easy installation with filter replacement needed every 3 months.
- Features a 360° rotating nozzle for flexible usage.
- Switch between filtered and unfiltered water modes.
2
Recommendations for Use
The Qure Faucet Filter is intended for skincare purposes only. It should not be used for drinking water or any other non-skincare applications. Replace the filter every three months for optimal performance. If you experience any issues such as water leaks or reduced flow, follow the maintenance guidelines in this manual.
3
Product Overview
- A. Water outlet shell (rotatable)
- B. Quick connect installation nut
- C. Quick release button
- D. Faucet body
- E. Switch knob (for filtered/unfiltered water)
- F. Filter cartridge
- G. Filter cartridge cover
- H. Bubbler wrench (used for removing thread attachments)
- I. Multi-functional adapter
- J. Adapter wrench (used for installing thread attachments)
- K. Thread adapters (12 pieces)
- L. Silicone rings (12 pieces, placed inside the threaded adapter)
4
What's Included
Qure Faucet Filter with
360° nozzle (filter cartridge preinstalled in the unit)1pc
Multi-functional
Adapters1pc
Adapter Wrench1pcs
Bubbler Wrench1pcs
Thread Adapters12pc
Silicone Rings12pc
User Manual1pc
5
Faucets Not Supported
The Qure Faucet Filter is compatible with most faucets with a circular tip. However, it does not support the following types:
Faucets with shower heads
Induction faucets
Pull-out faucets without detachable aerators
Faucets with non-standard threads or sizes
6
Water Mode Selection

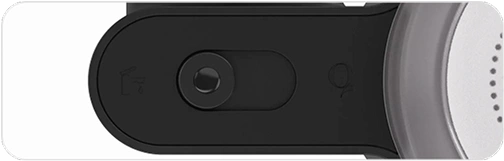

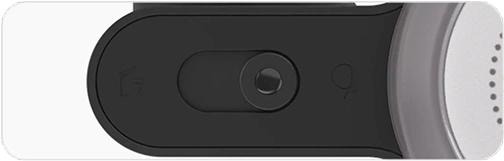

Mode Selection Dial
The mode selection toggle is located on the side of the faucet filter. It is clearly labeled with two symbols: a Q for filtered water and a tap water symbol for unfiltered water.
Filtered Water Mode
When the dial is turned to the Q position, the water flows through the filter cartridge located at the front of the device. The filtered water then exits through the lower outlet, providing clean, purified water ideal for facial cleansing and other skincare routines.
Tap Water Mode
By turning the dial to the tap water symbol, the water bypasses the filter cartridge and exits directly from the upper outlet of the device. This mode is perfect for tasks where filtered water is not required, such as rinsing your hands or filling a container with unfiltered water.
7
Installation Instructions
Preparing Your Faucet

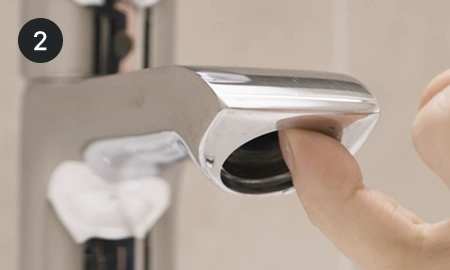

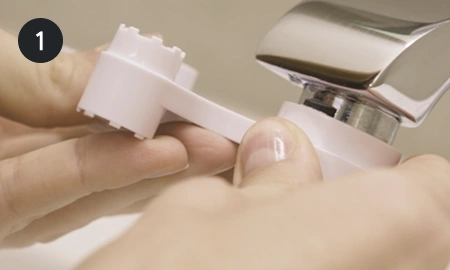

- Use the included bubbler wrench to unscrew the aerator or rectifier from your faucet.
- Select the appropriate faucet adapter from the 12 provided, based on the type of faucet outlet.
Installation Steps
1External Thread Adapter
Installation:
- Remove the aerator or rectifier from the faucet using the bubbler wrench.
- Tighten the matching external thread adapter onto the faucet.
- Use the adapter wrench to ensure the adapter is securely fastened.
2Internal Thread Adapter
Installation:
- If your faucet has an internal thread outlet, remove the aerator or rectifier using the bubbler wrench.
- Tighten the matching internal thread adapter onto the faucet, ensuring the sealing gasket is in place.
- Use the adapter wrench to securely fasten the adapter.

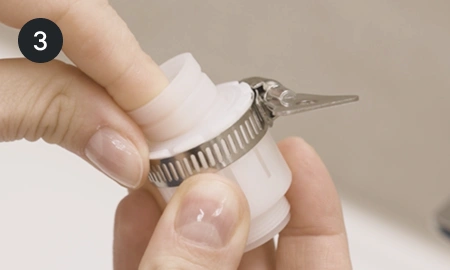

3Multi-Functional Adapter
Installation:
- For ordinary faucets without aerators or rectifiers, use the multi-functional adapter. Remove any existing attachment with the bubbler wrench if necessary. This adapter is suitable for faucets with a diameter of 15-21mm and no external threads.
- Prepare the Adapter: Depending on the diameter of your faucet outlet, you may need to remove the inner sealing ring from the multi-functional adapter.
- Attach the Adapter: Choose the M22 internal thread adapter and tighten it onto the multi-functional adapter.
- Install the Adapter: Insert the adjusted multi-functional adapter onto the faucet outlet and secure it. Use a straight screwdriver to tighten the screw and ensure a firm connection.

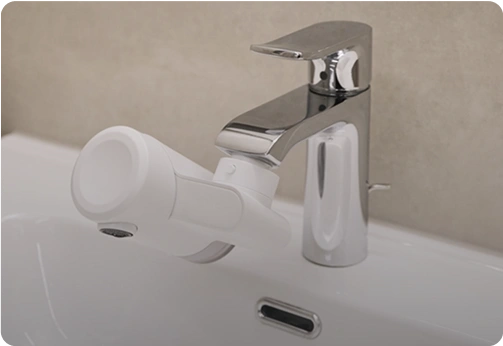

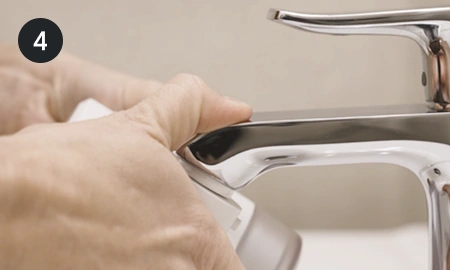

4Clipping on the Filter:
- Align the new filter with the adapter and clip it onto the faucet. You should hear two clicks when the filter is securely in place. After hearing the clicks, ensure the filter is firmly attached and cannot move on the tap.
8
Usage and Filter Replacement
Filter Replacement Steps
1Turn Off the Faucet:
- Turn off the faucet.

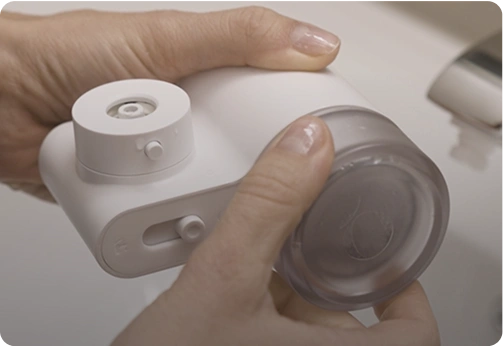

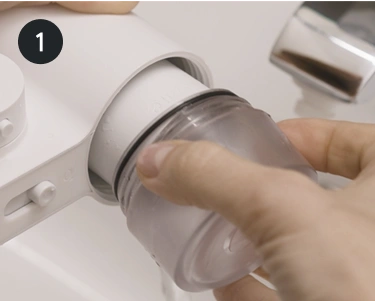

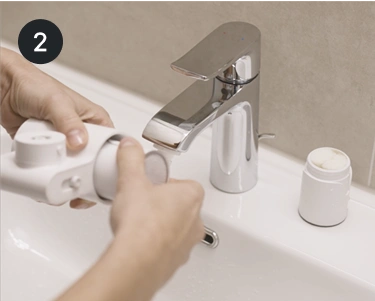

2Remove the Old Filter
Cartridge:
- Rotate the filter cartridge cover counterclockwise to remove the old filter cartridge.

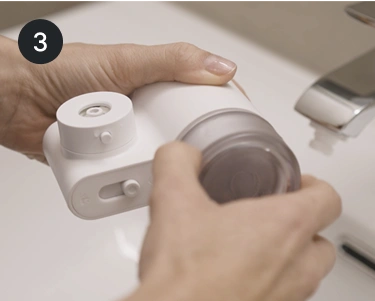

3Install the New Filter
Cartridge:
- Peel off the seal from the new filter cartridge.
- Install the cartridge into the faucet housing.
4Secure the Filter
Cartridge Cover
- Screw the filter cartridge cover clockwise to secure it.

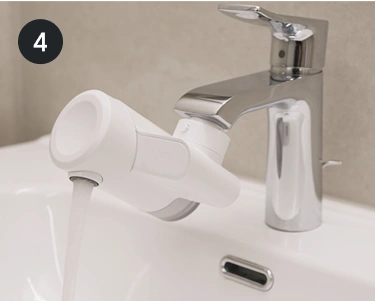

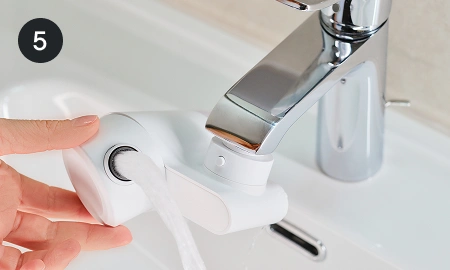

5Flush the System:
- Turn on the faucet and let raw water flow for 5 seconds, then switch to purified water mode and let it run for 3 minutes before first use.
9
Maintenance
To ensure your Qure Faucet Filter works optimally, regular maintenance is important:
Surface Cleaning:
Wipe the filter’s surface with a damp cloth.
Avoid Harsh Cleaners:
Do not use steel wool, abrasive cleaners, or corrosive liquids.
Filter Maintenance:
Replace the filter every 3 months, or sooner if the water flow slows down.
Inspect for Leaks:
Periodically check the connections to ensure there are no leaks.
10
Frequently Asked Questions
Can I use the water for drinking?
No, the Qure Faucet Filter is designed specifically for skincare purposes and is not suitable for drinking water.
What should I do if the water flow slows down?
Remove the filter and clean surface impurities. If the flow doesn’t improve, replace the filter.
Is this filter compatible with all faucets?
The filter is compatible with most standard faucets, but not with shower heads, induction faucets, or pull-out faucets without detachable aerators.
11
Common Problems & Solutions
Water Leaks
Ensure that all silicone rings and adapters are properly fitted. If leaks persist, check the connections and tighten as needed.
Low or Uneven Water Flow
Low flow can occur if the filter is clogged. Remove and clean or replace the filter as needed.
Odor in Water
If you notice any unusual odors, flush the filter by running water through the system for several minutes.
